20V 3000A Intelligent Air-Cooled 3-Phase 415V IGBT Specialized for Titanium Anodizing & Chrome Plating Rectifier

Name: 20V 3000A Intelligent AirCooled 3Phase 415V IGBT Specialized for Titanium Anodizing amp Chrome Plating Rectifier
Brand: xintongli
Price: 3600 USD

Wholesale 20V 3000A Intelligent Air-Cooled 3-Phase 415V IGBT Specialized for Titanium Anodizing & Chrome Plating Rectifier from china suppliers

Brand Name : xintongli

Model Number : GKD20-3000CVC

Certification : CE ISO9001

Place of Origin : China

MOQ : 1pcs

Price : 3600-4700$/unit

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 200 Set/Sets per Month

Delivery Time : 5-30 working days

Packaging Details : strong plywood standard exporting package

Contact Now

Product Detailed Description

1. Technical Specifications

Category	Specifications
Input	415V AC (±10%) 3-phase, 50/60Hz auto-sensing
Output	0-20V DC / 0-3000A DC continuously adjustable
Rated Power	60kW (20V × 3000A)
Efficiency	≥89% (full load, IGBT high-frequency soft-switching)
Ripple Coefficient	≤1% RMS (typical)
Control Modes	Auto-switching CC/CV modes
Communication	RS485/Modbus RTU (Ethernet/Profibus optional)
Cooling	Intelligent air-cooling (IP54, dual redundant centrifugal fans)
Operating Temp.	-10°C to +50°C (≤95% RH, non-condensing)

2. Core Features

Titanium Anodizing Mode

Pre-programmable step voltage curves (5V-20V) for titanium alloy coloring
Oxide thickness control accuracy: ±2μm (with amp-hour meter integration)

Hard Chrome Plating Optimization

Stable 3000A output (±0.5% current fluctuation)
Pulse plating support (adjustable frequency: 0.1-100Hz)

Smart Control

7-inch touchscreen + remote PC/PLC control
Process recipe storage (≥50 parameter sets)

Industrial Reliability

Dual-fan redundancy for full-load operation at 40°C ambient
Self-diagnostic system (OVP/OCP/SCP/overheat/phase-loss protection)

3. Typical Applications

Titanium Anodizing: Aerospace component coloring, medical implant surface treatment
Industrial Hard Chrome Plating: Hydraulic cylinder/mold repair (coating thickness ≥200μm)
Large-Scale Electroplating: Automotive bumper decorative chrome, multi-layer nickel plating for sanitary hardware
Automated Production Lines: Integration with robotic arms for fully automated workflows

4. Certifications & Safety

International Certifications: CE/EMC, RoHS, ISO 9001:2015
Safety Design:
- Fully isolated input/output transformer (3000V withstand voltage)
- Emergency stop button + audible/visual alarms

5. Design Advantages

Modular Structure: Independent compartments for IGBT drives, control boards, and cooling systems (easy maintenance)
Energy Efficiency: 35% lower energy consumption vs. traditional silicon rectifiers
Noise Control: ≤65dB(A) @ 1m (compliant with OSHA industrial noise standards)

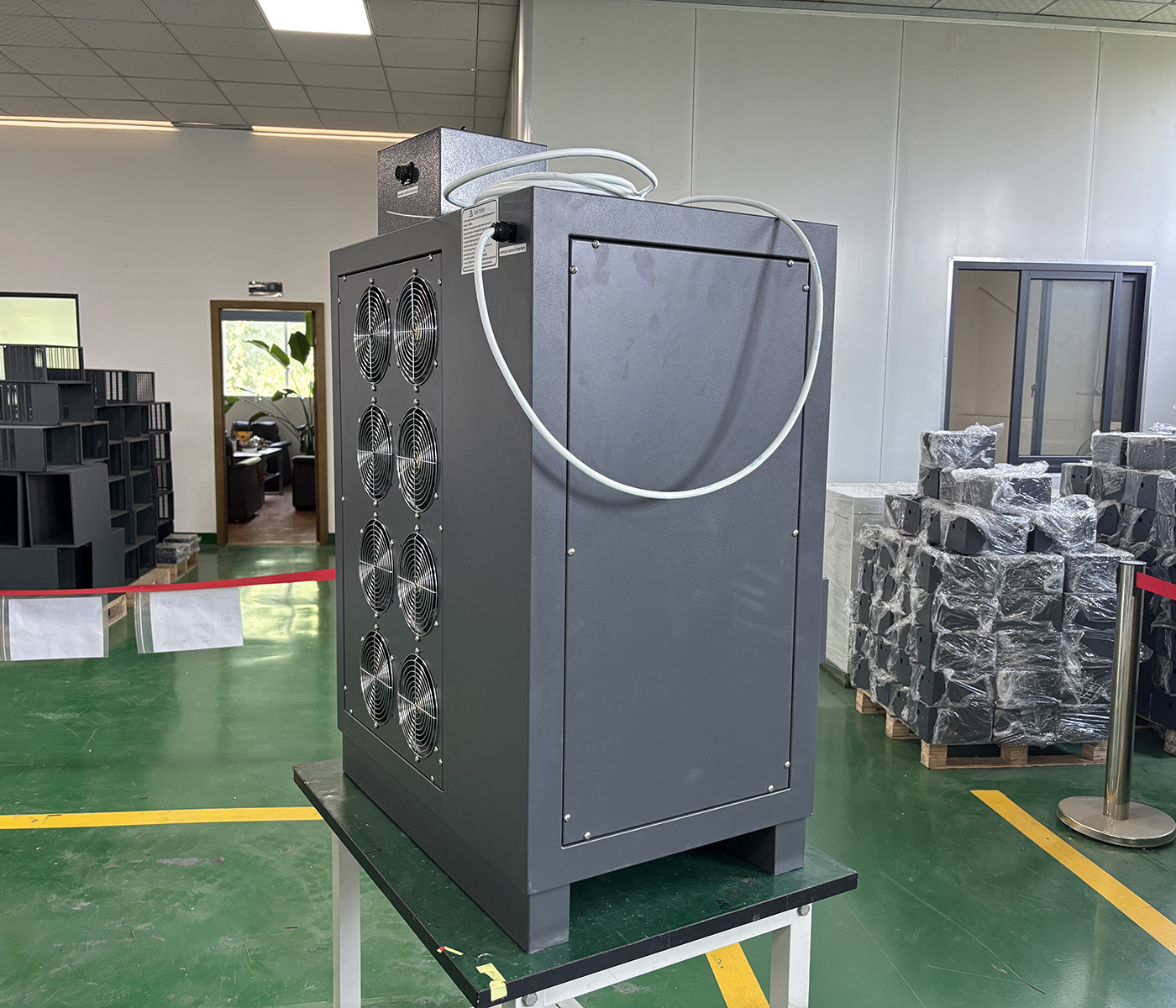

20V 3000A Intelligent Air-Cooled 3-Phase 415V IGBT Specialized for Titanium Anodizing & Chrome Plating Rectifier Images
